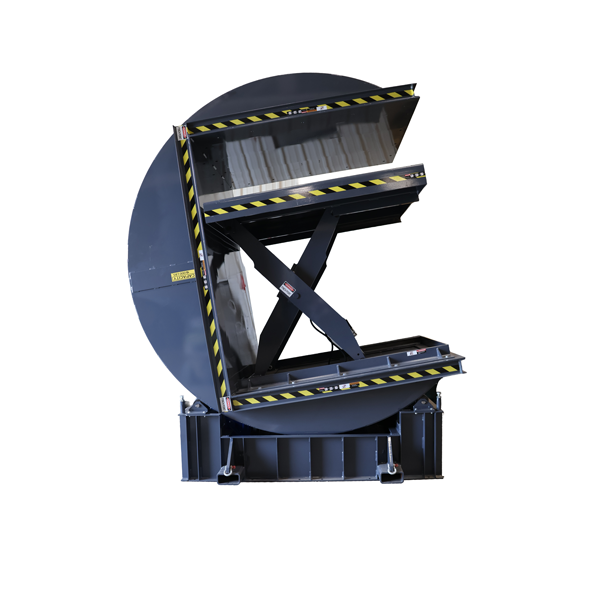

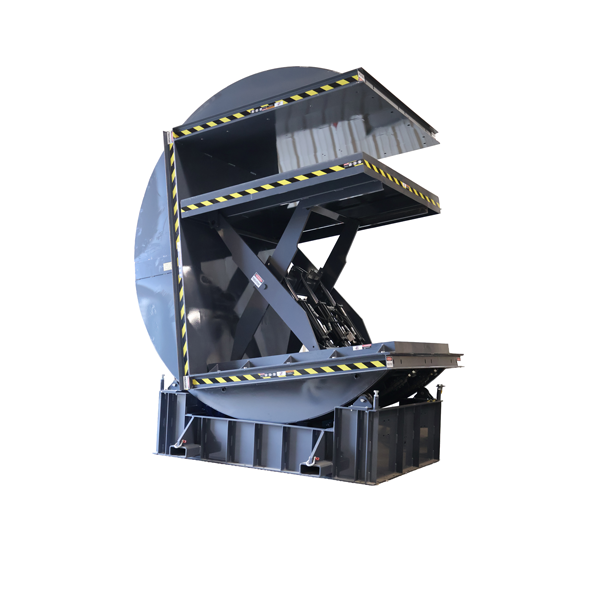

The Uni-Craft 180° Product Inverter is designed to securely clamp, rotate, and reposition palletized products while minimizing manual material handling. The system uses an integrated hydraulic scissor lift to apply controlled clamping pressure to the load before mechanically rotating the product a full 180°.

Rotation is achieved through a gear motor-driven, chain-operated mechanical drive system, providing smooth, controlled, and reliable inversion of heavy loads.

Once the load is securely clamped, the inverter rotates the product 180° to place it in the desired orientation. The hydraulic clamp then releases, allowing the operator to unload the product, remove the existing pallet, or replace it with a different pallet.

Ideal for pallet changing, product inversion, and manufacturing applications, the 180° Product Inverter provides an efficient solution for handling heavy or difficult-to-reposition loads. Each system can be configured around the customer’s product size, weight, pallet requirements, and production process.
